宁波众信轴承科技有限公司专业生产S1603轴承S1603英制轴承轴承,我公司有现货销售.需要S1603轴承S1603英制轴承轴承的图纸、结构、报价及配合安装尺寸等资料请联系我司销售人员!
公司还为您推荐以下热门型号：SR4Azz微型不锈钢轴承, S605zz不锈钢轴承, LR5302KDDU轴承 LR5302NPPU导轨滚轮轴承, SF692zz轴承SF692zz法兰轴承, LR5202 NPPU轴承LR5202KDDU导轨滚轮轴承, S6203zz.2RS轴承厂家S6203zz精密轴承, LV20/7ZZ导轨滚轮轴承, SR6zz轴承SR6zz不锈钢英制轴承, DAC40800302, SF624ZZ轴承SF624ZZ法兰轴承, LR6000NPPU=LR6000.2RSR, LR5200KDDU轴承 LR5200NPPU导轨滚轮轴承, S1602轴承S1602英制轴承, 特种U/V槽滚轮轴承, SR1-4zz轴承R1-4zz, SG20.2RS导轨滚轮轴承, LR605NPPU=LR605.2RSR, LFR5201-12, NA2210.2RS/X滚轮轴承, W1 RM1,
|
| |
| 轴承类型： |

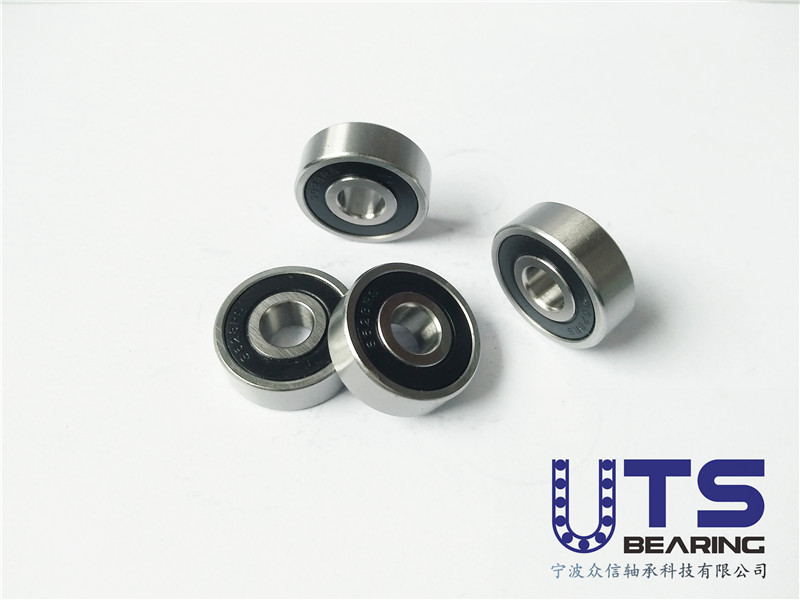

S1603ZZ不锈钢轴承 |
| 国内型号： |
S1603轴承S1603英制轴承 |
| 内径d(mm)： |
7.938 |
| 外径D(mm)： |
22.225 |
| 宽度C(mm)： |
7.144 |
| 宽度B(mm)： |
|
| 产品特性： |
防锈轴承 |
| 轴承材料： |
AISI440C |
|
|
轴承型号
|
内 径d
|
外 径D
|
宽 度B
|
倒 角r
|
动负荷
|
静负荷
|
钢球颗粒*直径
|
|
毫米 英寸
|
毫米 英寸
|
毫米 英寸
|
毫米 英寸
|
C
|
C0
|
|
S1601
|
4.763 .1875
|
17.463 .6875
|
★6.350 .2500
|
0.3 .012
|
1.511
|
0.724
|
6
|
3.969
|
|
S1602
|
6.350 .2500
|
17.463 .6875
|
★6.350 .2500
|
0.3 .012
|
1.511
|
0.724
|
9
|
2.831
|
|
S1603
|
7.938 .3125
|
22.225 .8750
|
△7.144 .2812
|
0.3 .012
|
2.547
|
1.342
|
7
|
3.969
|
|
S1604
|
9.525 .3750
|
22.225 .8750
|
△7.144 .2812
|
0.3 .012
|
2.547
|
1.342
|
7
|
3.969
|
|
S1605
|
7.938 .3125
|
23.019 .9062
|
7.938 .3125
|
0.3 .012
|
2.547
|
1.342
|
7
|
3.969
|
|
S1606
|
9.525 .3750
|
23.019 .9062
|
7.938 .3125
|
0.3 .012
|
2.547
|
1.342
|
7
|
3.969
|
|
S1607
|
11.113 .4375
|
23.019 .9062
|
7.938 .3125
|
0.3 .012
|
3.556
|
1.938
|
7
|
3.969
|
|
S1614
|
9.525 .3750
|
28.575 1.1250
|
9.525 .3750
|
0.3 .012
|
3.921
|
2.245
|
8
|
4.763
|
|
S1615
|
11.113 .4375
|
28.575 1.1250
|
9.525 .3750
|
0.3 .012
|
3.921
|
2.245
|
8
|
4.763
|
|
S1616
|
12.700 .5000
|
28.575 1.1250
|
9.525 .3750
|
0.3 .012
|
3.921
|
2.245
|
8
|
4.763
|
|
S1620
|
11.113 .4375
|
34.925 1.3750
|
11.113 .4375
|
0.6 .024
|
5.881
|
3.471
|
10
|
4.763
|
|
S1621
|
12.700 .5000
|
34.925 1.3750
|
11.113 .4375
|
0.6 .024
|
5.881
|
3.471
|
10
|
4.763
|
|
S1622
|
14.288 .5625
|
34.925 1.3750
|
11.113 .4375
|
0.6 .024
|
5.881
|
3.471
|
10
|
4.763
|
|
S1623
|
15.875 .6250
|
34.925 1.3750
|
11.113 .4375
|
0.6 .024
|
5.881
|
3.471
|
10
|
4.763
|
|
S1628
|
15.875 .6250
|
41.2751.6250
|
12.700 .5000
|
0.6 .024
|
7.232
|
4.45
|
9
|
6.35
|
|
S1630
|
19.050 .7500
|
41.2751.6250
|
12.700 .5000
|
0.6 .024
|
7.232
|
4.45
|
9
|
6.35
|
|
S1633
|
15.875 .6250
|
44.4501.7500
|
12.700 .5000
|
1.0 .039
|
7.232
|
4.45
|
9
|
6.35
|
|
S1635
|
19.050 .7500
|
44.4501.7500
|
12.700 .5000
|
1.0 .039
|
7.232
|
4.45
|
9
|
6.35
|
|
| |
| |
|
